How to Choose PON Equipment for FTTH CATV Combined Projects

Network upgrade projects always bring tough trade‑offs for system integrators and ISP buyers. Many engineering teams encounter real‑world headaches when planning to deploy or upgrade passive optical networks, especially for sites requiring both home broadband and overlay CATV television signals. As widely discussed in industry technical notes, wavelength conflict, DBA performance and existing ODN reusability are the most‑mentioned pain points in mixed‑service PON deployment.

This article will not go deep into complicated physical‑layer protocol details. Instead, it delivers practical comparison and hardware selection advice for real‑world FTTH‑CATV projects. Whether you are building a brand‑new network or renovating legacy infrastructure, understanding the practical pros and cons of each solution can help you avoid costly on‑site failures.

Core Practical Challenges of FTTH‑CATV PON Deployment

Before jumping into product comparison, it is necessary to sort out common obstacles that field engineers keep running into. These practical issues often decide which PON standard fits your project better.

First, legacy infrastructure reuse. A large number of existing FTTH sites were built around GPON. Project owners hope to keep the original fiber cables, splitters and distribution boxes to cut reconstruction budgets. However, not all hardware can support smooth co‑existence of old and new optical signals. Improper matching will cause intermittent ONT offline and unstable CATV video output.

Second, multi‑service bandwidth pressure. Modern sites carry more than simple internet access. IPTV streams, analog CATV overlay, VoIP voice and high‑speed home internet run on the same fiber. Poor dynamic bandwidth scheduling will bring stuttering video experience, which becomes a major complaint source from end subscribers.

Third, future‑proof investment cycle. Operators and integrators need to balance current project cost and 5‑8 years service lifecycle. Choosing overly‑low‑spec hardware may force full replacement within several years, while over‑spec purchasing creates unnecessary capital waste.

Side‑by‑Side Comparison: GPON vs XGS‑PON for FTTH‑CATV Scenarios

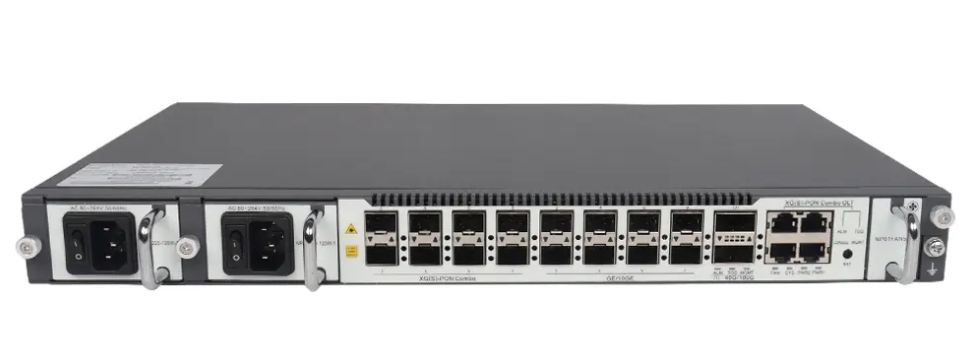

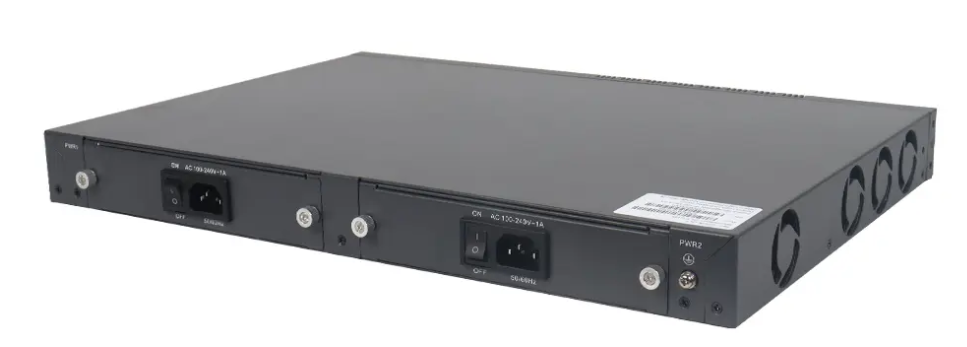

Evaluation Item	OLT‑G16V (Pure GPON OLT)	XGSPON‑08P (XG(S)‑PON Combo OLT)
PON Port Rate	Downstream 2.488Gbps / Upstream 1.244Gbps (ITU‑T G.984)	10Gbps symmetric (XGS‑PON mode); backward‑compatible 2.488G/1.244G (GPON mode)
Hardware PON Port Quantity	16 × GPON ports	8 × Combo XG(S)‑PON/GPON ports
Uplink Interface	4×10GE(SFP+) + 8×GE copper ports	2×100G QSFP28 + 8×10GE/GE SFP slots
Existing GPON ODN Re‑usability	Works with standard GPON splitters; no extra filter required for pure‑GPON network	Supports existing GPON ODN; external co‑existence filter required for mixed GPON/XGS‑PON co‑fiber deployment
1550nm CATV Overlay Compatibility	Supports 1550nm CATV overlay; widely deployed for FTTH‑CATV triple‑play projects	Supports 1550nm CATV overlay; wavelength isolation must be considered under mixed‑mode operation
Splitting Ratio Spec	Hardware max 1:128; 1:64 recommended for stable broadband + CATV mixed‑service running	Hardware max 1:256; 1:64–1:128 recommended; full link attenuation testing required for CATV overlay scenarios
Typical Target Deployment Scenarios	Large‑scale rural FTTH, community residential network, cost‑sensitive triple‑play projects with massive GPON subscribers	High‑density apartments, hotel campuses, enterprise networks, new‑build high‑speed networks requiring future‑proof 10G symmetric bandwidth

When reviewing hardware options, do not only focus on nominal rate parameters. For FTTH‑CATV combined projects, pay extra attention to built‑in optical filter capability and DBA scheduling performance of 10G PON OLT equipment. Many low‑cost devices on the market cut corners on these two modules, which leads to frequent video freezing under heavy real‑time service load.

Decision‑Making Guide: Which Solution Should You Pick?

Choose GPON if:

Your project targets rural broadband roll‑out or budget‑limited renovation. Existing ODN network is already stable, subscriber bandwidth demand stays below 300Mbps per household, and CATV overlay is your core requirement. GPON has accumulated massive field‑verified deployment experience. Spare parts and maintenance resources are easy to obtain in global markets.

Choose XGS‑PON if:

You work on high‑density apartments, large‑scale hotel campuses or commercial‑mixed residential zones. End users require gigabit‑class symmetric bandwidth, and you expect network capacity to serve the next 6‑8 years. In this case, XGS‑PON compatible ONT with CATV port brings obvious long‑term value. Remember: mixed GPON and XGS‑PON running over one fiber requires qualified filter modules inside OLT, do not skip this configuration to save short‑term cost.

Avoid improper deployment

Do not force XGS‑PON mixed‑mode deployment if your on‑site team lacks relevant PON co‑existence debugging experience. Unisolated wavelength interference will create hard‑to‑reproduce intermittent faults that consume plenty of after‑sales manpower.

Lessons From Real‑World Project Practice

One Southeast‑based system integrator once planned network renovation for a coastal resort. Initially, the team considered directly deploying XGS‑PON mixed‑mode on the original GPON fiber network. After reviewing industry‑documented engineering risks, they ran small‑scale field tests first. Early tests showed signal fluctuation without proper filter modules. Finally, they selected OLT hardware with integrated co‑existence optical filters, keeping most original ODN components and adding XGS‑PON service for high‑end guest buildings, while retaining GPON for general‑use zones. This segmented deployment balanced budget, stability and future expansion capacity.
