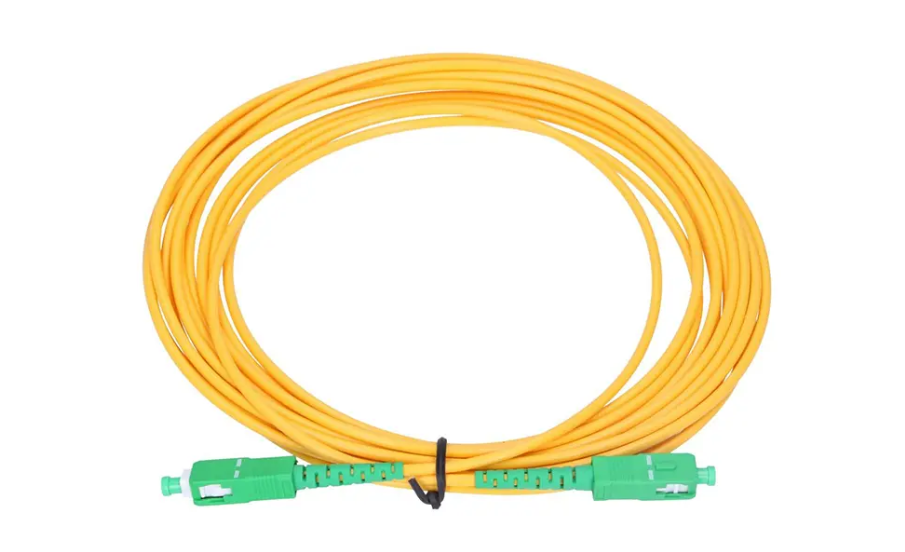

1. What Is An FTTH SC APC Singlemode Fiber Optic Patch Cord, And Why Is It Essential For Home Broadband?
Nowadays, full-fiber broadband construction has completely replaced old copper cable networks, with FTTH (Fiber to the Home) becoming the standard access method for residential estates, office buildings and industrial parks across Hangzhou and all over China. If you work as a network engineer, system integrator or telecom procurement staff, you must have noticed that SC APC singlemode fiber jumpers are mandatory accessories laid in every passive optical network terminal link.
Many purchasers mix up SC PC, SC UPC and SC APC fiber connectors when sourcing FTTH wiring materials. Flat-faced PC connectors and slightly rounded UPC ferrules work fine for short cabinet internal wiring, yet they cannot curb light reflection during long-distance singlemode signal transmission. The 8-degree angled polishing design of SC APC connectors cuts reflected optical noise drastically, which is why operators specify this connector style for household ONU and optical splitter connections.
Hangzhou Softel Optic Equipment Co., Ltd. has specialized in fiber optic component manufacturing for more than a decade, producing mass-produced SC APC singlemode fiber patch cords built to rigorous FTTH engineering standards. Every finished unit is tested against the strict optical metrics listed on our official spec sheet, solving recurring field issues like fluctuating broadband speeds, excessive signal attenuation and premature cable failure seen with cheap generic fiber cords on the market.
2. What Optical Performance Metrics Set Softel’s SC APC Singlemode FTTH Patch Cords Apart From Competitors?

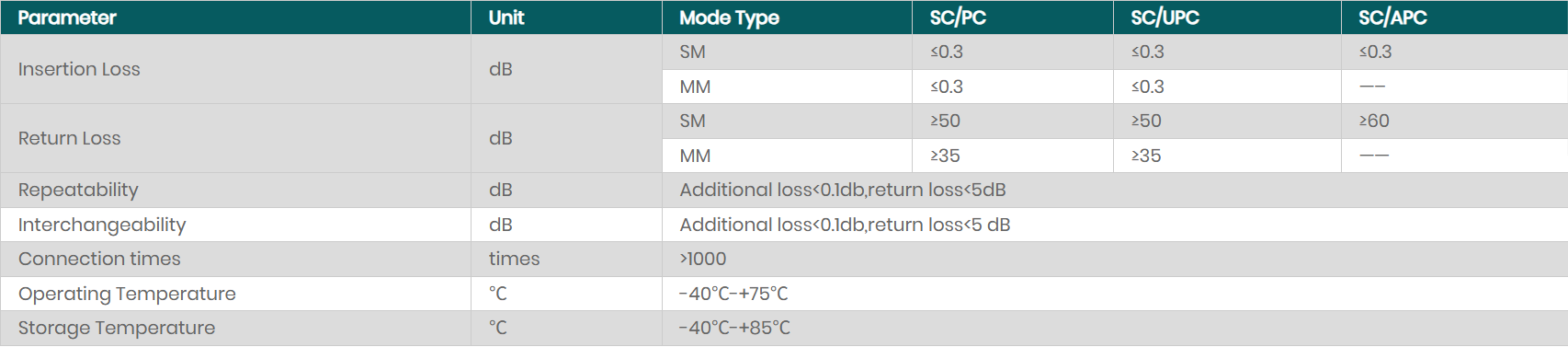

Optical performance is the core benchmark to judge fiber jumper quality, and all our FTTH SC APC singlemode fiber optic patch cords adhere to rigid factory test thresholds pulled directly from our technical datasheet:
2.1 Ultra-low Insertion Loss Eliminates Signal Weakening
Insertion loss measures how much light signal dissipates at the fiber connection point. Our singlemode SC APC fiber cord maintains insertion loss ≤0.3dB under standard testing environments. Cheaper off-brand jumpers often carry loss figures above 0.5dB, which creates frequent lagging and random disconnections for end-user gigabit broadband. For indoor short-distance LAN layouts requiring multimode fiber variants, we also cap insertion loss at under 0.3dB to guarantee steady data flow. This core advantage is exactly what buyers look for in Low insertion loss SC APC fiber jumper.
2.2 Class-leading Return Loss Suppresses Signal Interference
Return loss quantifies a connector’s capacity to block reflected light, and this is where SC APC models outperform all other SC connector variants. Softel’s singlemode SC APC patch cords deliver return loss ≥60dB, outperforming SC UPC and SC PC singlemode versions that only hit ≥50dB. This superior rating eliminates echo signal distortion over long singlemode FTTH runs, a critical feature for modern 10G GPON and XGPON high-speed fiber access frameworks. Project contractors always prioritize High return loss singlemode SC APC fiber cord to avoid network signal jamming during mass residential deployment. Our multimode SC series cables still hit return loss above 35dB to suit short-range commercial indoor wiring jobs.
2.3 Stable Repeatability And Interchangeability Cut Field Debugging Time
FTTH site installation and post-maintenance require frequent plugging and unplugging of fiber cords for signal testing. Our SC APC singlemode fiber patch cord limits additional insertion loss under 0.1dB and return loss deviation below 5dB after dozens of disconnections. Uniform standardized connector housings allow seamless swapping between all standard SC equipment ports without noticeable signal dips, slashing the debugging hours field construction crews spend on each community fiber rollout.

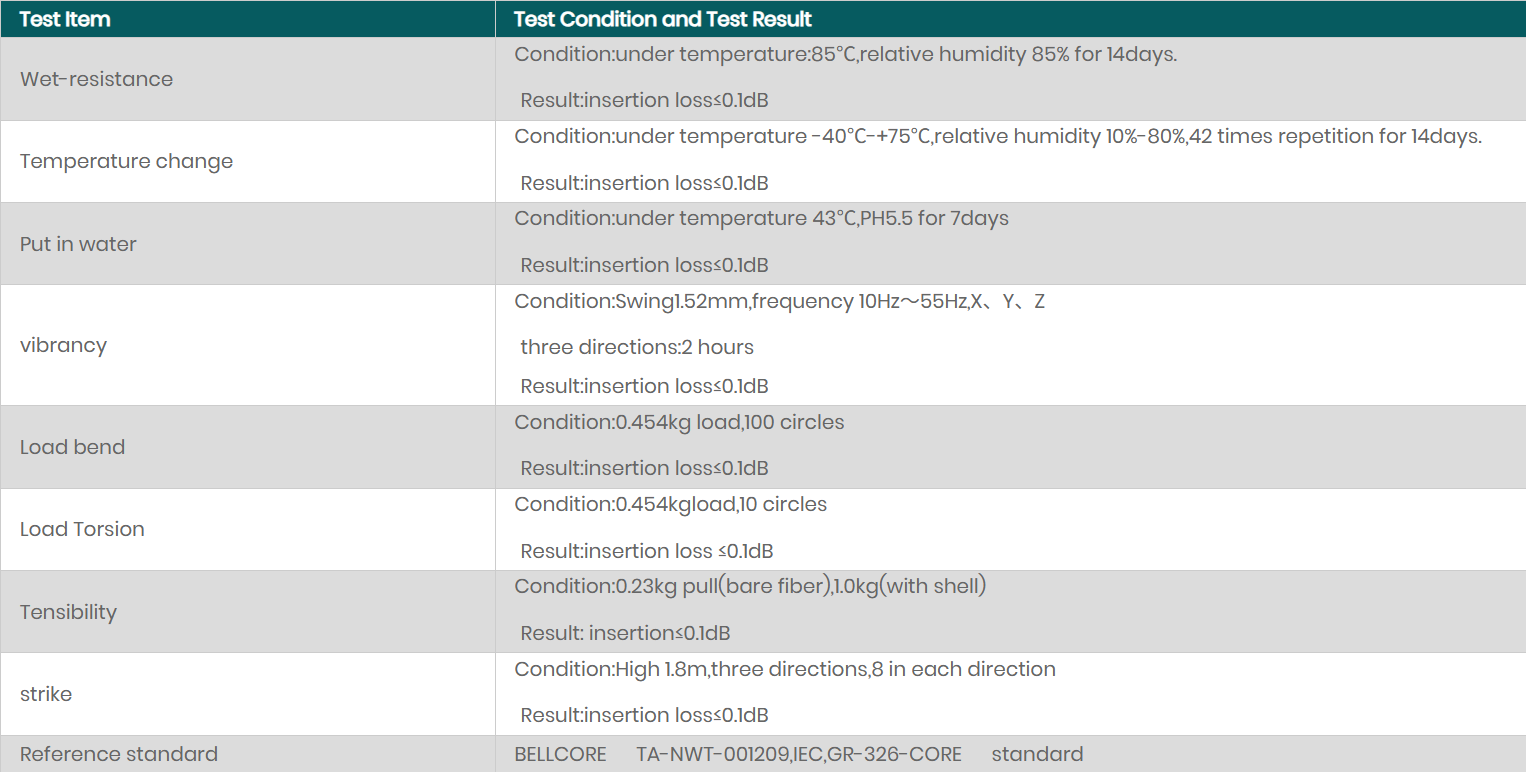

3. How Do These Fiber Cables Handle Harsh Indoor And Outdoor FTTH Operating Environments?
FTTH fiber jumpers face wildly variable working conditions year-round: overheated sealed telecom cabinets in summer, frost-exposed outdoor wall fiber boxes in winter, and damp basement wiring spaces. Softel’s SC APC singlemode fiber jumpers use robust LSZH flame retardant or PVC outer jackets paired with precision ceramic ferrules, supported by two key environmental performance parameters. The product fully meets the standard of FTTH fiber optic patch cord -40~75℃ operating temp, adapting to Hangzhou’s humid, four-season climate perfectly.
-
Operating temperature range: -40℃ to +75℃, perfectly suited to Hangzhou’s four-season climate for household indoor wiring, roadside communication cabinet installation and external wall fiber enclosures.
-
Storage temperature range: -40℃ to +85℃. Bulk inventory held in warehouses for months or years will not develop cracked outer jackets or deformed ferrules from temperature shifts.
For long-term project value, each SC APC connector endures over 1000 plug cycles. For large-scale residential FTTH estate deployments, this robust reusability reduces ongoing maintenance and replacement expenses by roughly 30% compared to low-cost disposable fiber patch cords, making it a Reusable SC APC singlemode fiber patch cord with outstanding cost performance for long-term engineering projects.
4. Where Exactly Are FTTH SC APC Singlemode Fiber Optic Patch Cords Put To Practical Use?
This specialized fiber jumper fits nearly all full-fiber communication infrastructure builds, with five primary real-world applications:
- Residential FTTH Passive Optical Networks: The core connection cable linking central office OLT devices, optical splitters and individual household ONU terminals, its most widespread use case. Local installers mainly purchase SC APC singlemode fiber patch cable for FTTH community renovation and new residential fiber laying.
- Commercial Office Broadband Retrofits: Full-fiber network upgrades for hotels, business parks and multi-story office blocks, supporting stable high-bandwidth access for hundreds of concurrent users.
- Campus Wide Area Fiber Layouts: Long-distance singlemode signal transmission between campus main communication rooms and terminal equipment in classroom buildings and dormitories.
- Smart City Surveillance Networks: Fiber links connecting roadside optical transceivers and HD monitoring cameras, built to withstand extreme outdoor temperature fluctuations.
- Telecom Operator Central Office Cabinet Cross-connection: Internal wiring for PON equipment racks, fully compatible with standard SC port hardware from mainstream global communication equipment brands.
5. Why Should FTTH Project Buyers Partner With Hangzhou Softel Optic For SC APC Fiber Patch Cord Supply?
As a Hangzhou-based professional fiber optic hardware manufacturer , we stand apart from small generic assembly factories in three irreplaceable ways: First, complete in-house production workflow. We independently manufacture connector ferrules, assemble finished fiber cables and conduct full optical testing, with all technical indicators matching our published datasheet — no false advertising of loss performance metrics. Second, fully customizable product support. Clients can tailor cable length, outer jacket flame retardant materials, cord color and packaging to match unique FTTH project specifications, with support for small sample trial orders and mass bulk engineering supply. Third, rigorous multi-stage quality control. Every finished fiber jumper undergoes two full rounds of optical performance testing before shipment, with formal test reports provided to meet telecom tender filing requirements.
6. Final Answer: Is The SC APC Singlemode Patch Cord Still Worth Investing In For New FTTH Projects?
As gigabit and 10G PON FTTH networks continue expanding across every city, demand for high-performance FTTH SC APC Singlemode Fiber Optic Patch Cord will only grow. Cutting corners with low-grade fiber jumpers carrying high insertion loss and weak return loss creates hidden, costly faults across entire community fiber access systems.
Hangzhou Softel Optic Equipment Co., Ltd. adheres to strict optical parameter standards, delivering low-loss, anti-reflection, long-lasting SC APC singlemode fiber patch cords for global telecom operators, system integrators and engineering contractors. Whether you need sample evaluation units or bulk procurement for large residential FTTH construction projects, visit our official website https://www.softeloptic.com/ to browse our complete fiber jumper product catalog and submit custom project requirement inquiries.
Post time: Aug-10-2026
