Introduction
Hospitality facilities, educational campuses, medical institutions and small-scale community CATV operators often face a common upgrade challenge with legacy coaxial TV distribution systems. Most modern video devices including HD media players, NVR surveillance systems and streaming media hardware only support HDMI output. However, traditional analog televisions and existing coaxial cable infrastructures can only receive standard RF analog signals. Full cable replacement or room-by-room set-top box installation requires substantial budget investment and creates ongoing maintenance challenges for facility managers.
The AH1916H 16-in-1 HDMI Input Analog Fixed Channel Modulator addresses these real-world industry challenges effectively. Manufactured by Hangzhou Softel Optic Co., Ltd., an experienced CATV and fiber optic equipment supplier based in Hangzhou High-tech Zone, this rack-mount all-in-one modulation unit transforms up to 16 independent HDMI high-definition video sources into stable fixed-frequency analog RF channels. All processed signals are combined into a single coaxial output for seamless whole-site signal distribution.
Unlike discrete single-channel modulator setups that waste cabinet space and easily generate signal interference, this 16 channel fixed frequency CATV modulator integrates 16 fully independent modulation modules into a compact 4RU standard rack chassis. Equipped with precise MCU RF frequency locking technology, it maintains consistent channel accuracy under long-term operation, making it a reliable and cost-efficient headend solution for mid-sized analog TV system renovation projects worldwide.
Core Technical Advantages of Softel AH1916H Modulator
1. Independent Channel Design Eliminates Signal Crosstalk

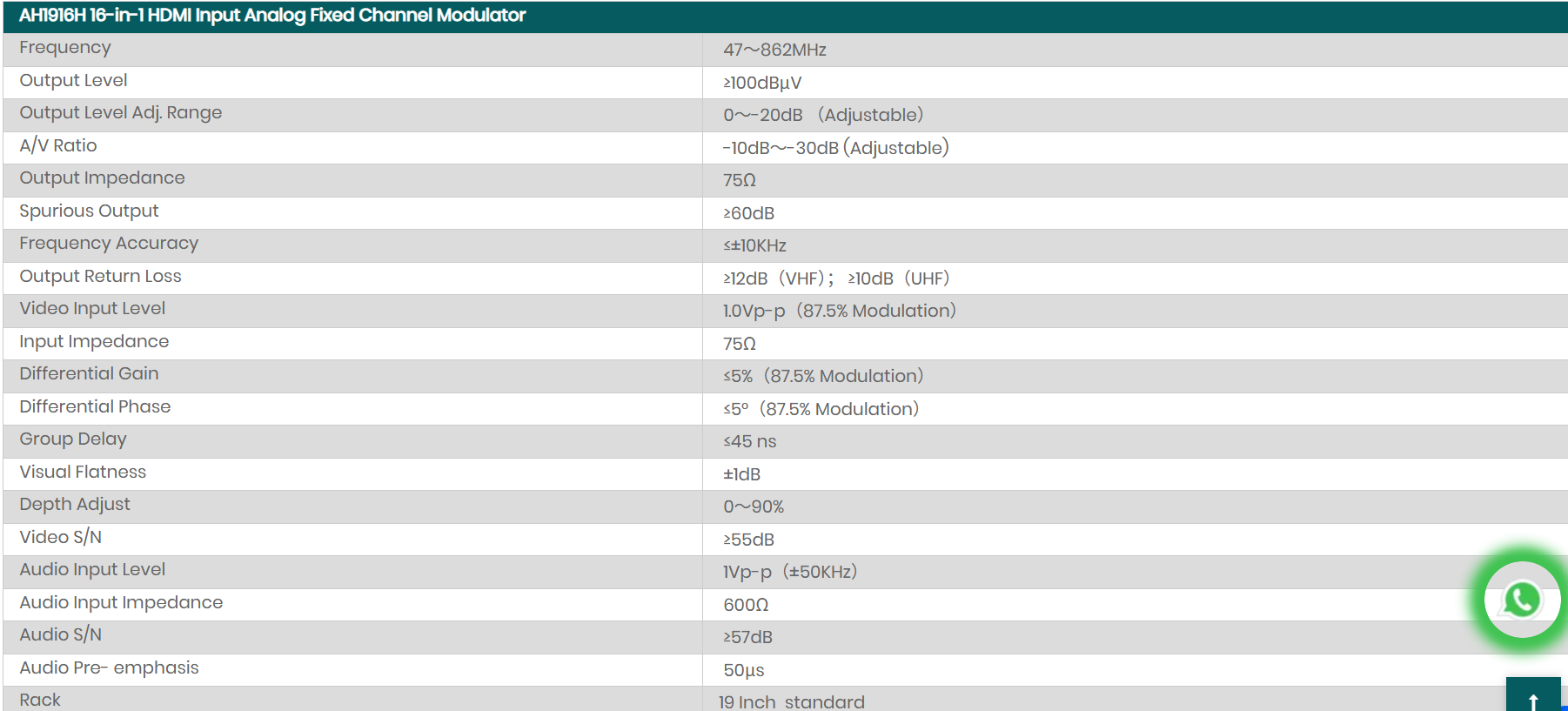

Every HDMI input on the AH1916H connects to a dedicated analog RF fixed channel with zero shared circuit design between individual modules. The device supports factory frequency presetting across the 47~862MHz spectrum, complying with global regional broadcasting standards including PAL D/K, PAL B/G and NTSC. With frequency accuracy controlled within ±10KHz, it completely avoids adjacent-channel crosstalk issues commonly seen in low-cost integrated modulators.
Built-in SAW surface acoustic wave filters boost the in-band carrier-to-noise ratio to over 60dB and deliver a video signal-to-noise ratio above 55dB. This ensures crisp, stable video output without screen flickering, color distortion or static noise on analog display terminals. The adjustable RF output level from 0 to -20dB adapts to coaxial cables of varying lengths, removing the need for additional signal amplifiers in short and medium-distance transmission scenarios.
2. Industrial-Grade Stability for 24/7 Unattended Operation
Most budget multi-channel modulators use simplified power circuits, which frequently cause system crashes and frequency drift after prolonged high-load operation. These unstable issues directly disrupt hotel guest TV experiences and campus educational broadcasting services. In contrast, Softel equips the AH1916H with isolated industrial wide-voltage power modules that support standard AC220V power input. Every unit undergoes strict 72-hour continuous aging testing before factory shipment to guarantee operational stability.
The full aluminum alloy chassis features optimized heat dissipation structures to prevent heat accumulation during non-stop running. With differential gain controlled below 5% and differential phase within 5°, the device maintains accurate and consistent color reproduction for loop-playing content such as hotel welcome videos and campus monitoring footage. Its reliable 24/7 operation capability greatly reduces routine maintenance workload for technical teams.
3. Broad Compatibility and Flexible System Adaptation
As a high-performance HDMI to analog RF signal converter, the AH1916H features universal HDMI input interfaces compatible with mainstream video devices, including media servers, satellite receivers, surveillance NVRs, smart TV boxes and Blu-ray players. Its adjustable A/V ratio ranging from -10dB to -30dB balances audio volume across different signal sources, eliminating inconsistent loudness between TV channels.
The standard 75Ω F-type RF output port supports direct connection with CATV combiners, trunk amplifiers and existing building coaxial networks, requiring no extra conversion adapters. For commercial hotel projects, technicians can assign exclusive fixed channels for hotel promotional videos, live sports channels, lobby real-time monitoring and local news programs without repeated frequency debugging after installation.
4. Space-Saving Structure and Simplified On-Site Commissioning

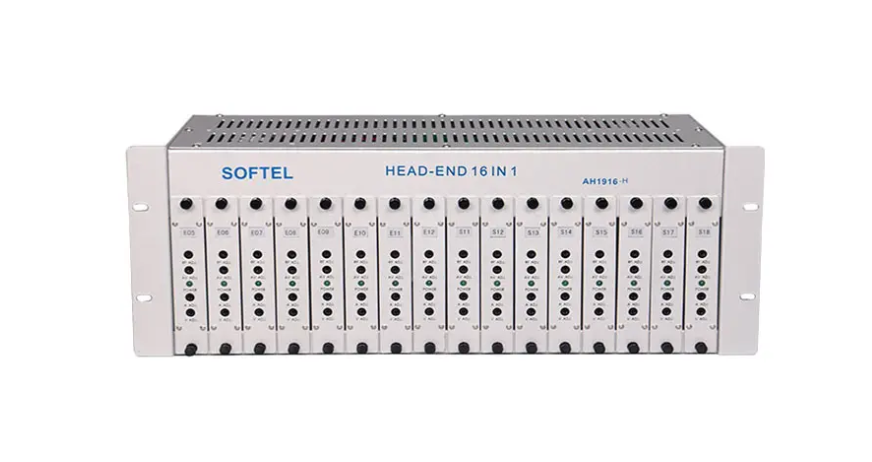

Designed for standard 19-inch equipment racks with 4RU height, the AH1916H saves far more cabinet space compared with stacked single-channel modulator combinations. All channel status indicators and fine-tuning controls are centrally arranged on the front panel. Field technicians can adjust individual channel output levels and audio parameters without disassembling the chassis, significantly speeding up on-site installation and commissioning processes for engineering projects.
Customization and OEM services are fully available. Softel provides personalized chassis logo printing, exclusive fixed-frequency channel pre-programming and matched RF combiner accessories to deliver complete one-stop CATV headend solutions, catering to the needs of system integrators and global bulk importers.
Wide Application Scenarios for AH1916H 16-in-1 Analog Modulator
1. Hotel and Resort Guest Room TV System Upgrades
The device serves as a practical Hotel TV headend analog RF modulator for hospitality renovation projects. Most mid-range and economy hotels retain original coaxial wiring but require customized internal TV channels to enhance guest experience. By connecting custom video servers, streaming devices and lobby surveillance feeds to the device’s 16 HDMI ports, each independent content source corresponds to a fixed TV channel. Guests can access dedicated programs directly via ordinary analog TVs, avoiding the high cost of installing IPTV set-top boxes in every guest room.
2. Campus and Vocational Training Center Broadcasting Systems
Schools, vocational institutions and corporate training centers regularly broadcast teaching courses, campus security footage and public notice loops on classroom TVs. As a professional School campus CCTV coax distribution modulator, the AH1916H delivers stable long-term operation suitable for daily fixed-time broadcasting tasks. Its fixed-frequency design allows teachers and administrators to quickly locate dedicated teaching and monitoring channels without frequent frequency scanning.
3. Centralized Monitoring Distribution for Hospitals, Factories and Institutions
Medical wards, industrial workshops and closed management facilities require stable real-time surveillance signal distribution across multiple display terminals. The AH1916H converts multi-channel HDMI output from NVR recording devices into standard RF signals, transmitting monitoring data through existing building coaxial networks. This enables full-area monitoring layout at low cost, with no need for comprehensive IP network reconstruction.
4. Small Community and Apartment Complex CATV Headend Systems
For residential communities with user scales under 100 households, large-scale digital QAM multiplexers are often unnecessary and cost-ineffective. The AH1916H integrates local live TV signals, property notice videos and community security feeds into a single coaxial trunk line. It provides stable analog TV distribution services with lower upfront equipment investment, perfectly matching the operational needs of small residential communities.
Why Choose Softel AH1916H Over Ordinary Multi-Channel Modulators
Founded in 2005, Hangzhou Softel Optic boasts more than 16 years of professional R&D and manufacturing experience in CATV HFC transmission equipment. The company owns independent production workshops and standardized full-process quality inspection systems. Every unit of this Softel CATV analog modulation equipment undergoes rigorous tests for signal stability, heat resistance and compatibility before delivery. All products hold CE certification, supporting stable export and application in Southeast Asia, Latin America, Eastern Europe and other global markets.
Most low-cost multi-channel analog modulators on the market cut production costs by omitting independent frequency-locking modules. This leads to obvious frequency drift and signal instability after 3 to 6 months of formal use, requiring frequent on-site maintenance and debugging. In comparison, the AH1916H adopts independent MCU frequency control chips for each channel, with a practical service life of over 8 years under normal operating conditions. It effectively reduces long-term after-sales maintenance costs for engineering integrators.
Beyond standalone modulator products, Softel offers a full range of supporting equipment including RF combiners, high-power EDFA optical transmitters and FTTH ONT terminals. The complete supporting product system forms a mature one-stop analog CATV headend solution, helping global clients avoid signal compatibility failures caused by mixed-brand equipment matching.
Conclusion
As the global television industry undergoes gradual transition from analog to digital systems, fixed-frequency multi-channel HDMI analog modulators remain essential core headend equipment for cost-sensitive small and medium-sized venues. The AH1916H 16-in-1 HDMI Input Analog Fixed Channel Modulator strikes a perfect balance between stable signal performance, long-term operational reliability and project cost control, effectively solving the signal compatibility problem between modern HDMI high-definition sources and traditional coaxial analog TV networks.
Whether you are a professional CATV system integrator, hotel engineering contractor, campus audio-visual equipment purchaser or optical communication equipment importer, this all-in-one modulation device provides a mature, low-maintenance and high-cost-performance analog signal modulation solution. Feel free to contact Hangzhou Softel Optic to obtain detailed technical datasheets, customized frequency preset services and competitive bulk pricing for the AH1916H modulator.
Post time: Aug-03-2026
