For residential renovation, smart home and commercial interior FTTH construction, thick conventional fiber cables ruin wall aesthetics and bring trouble during concealed wiring. Softelo Optic’s invisible optical cable solves this pain point perfectly, with ultra-miniature outer dimension and stable G657A2 fiber optical performance, widely favored by system integrators and telecom engineering teams across global markets. We break down its core advantages by combining official product technical parameters for buyers to judge practical value.
1. Stable G657A2 Single-Mode Fiber, Low Signal Attenuation for Long-Distance Transmission

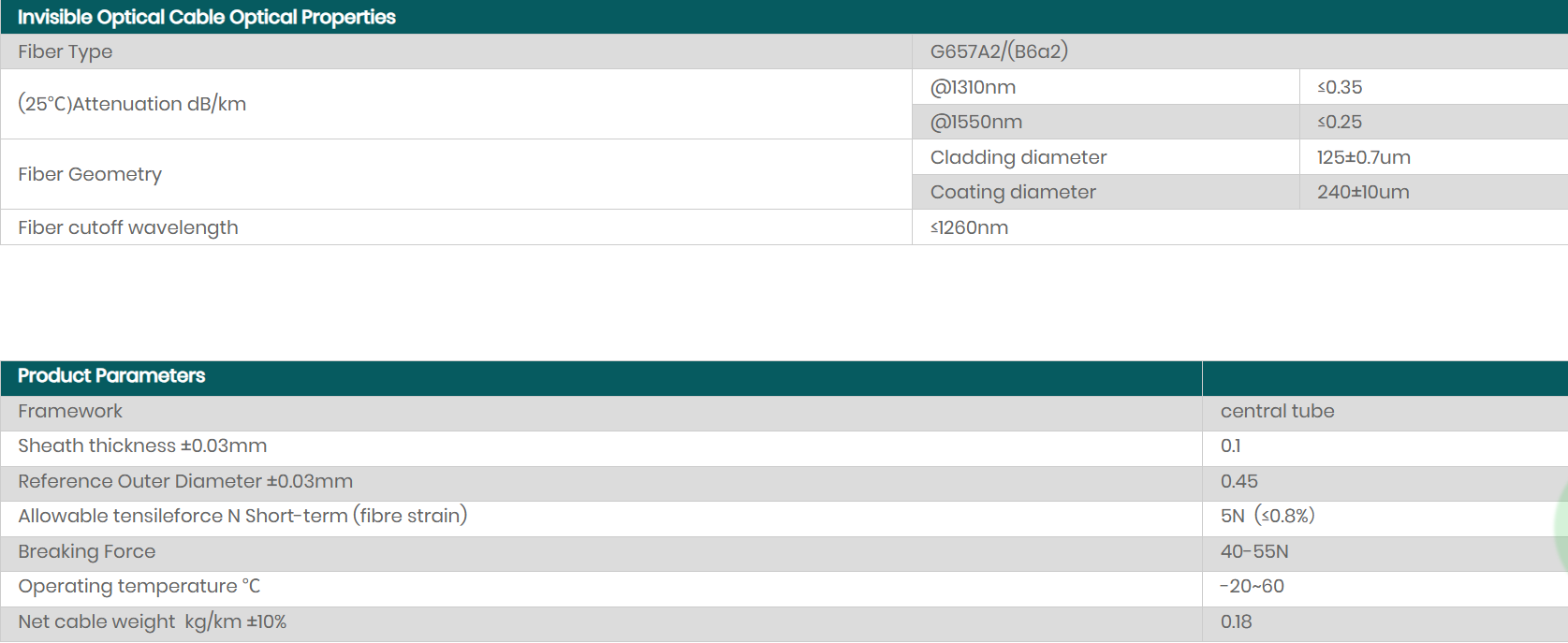

The invisible cable adopts standard G657A2 (B6a2) bend-insensitive single mode fiber, the mainstream core fiber for indoor FTTH deployment. Its optical index fully meets international telecom standards:
- Attenuation at 1310nm wavelength ≤0.35dB/km
- Attenuation at 1550nm wavelength ≤0.25dB/km
Low attenuation ensures clear signal transmission without loss, even for long-distance indoor wiring across multi-story buildings. The fiber cutoff wavelength is controlled below 1260nm, effectively avoiding modal dispersion interference.
In terms of fiber geometry consistency, the cladding diameter stays 125±0.7μm and coating diameter 240±10μm. Strict dimensional control eliminates signal fluctuation caused by uneven fiber manufacturing, a detail many low-cost thin fiber suppliers ignore.
2. Ultra-Thin Central Tube Structure, True "Invisible" Concealed Wiring
Different from loose tube or ribbon fiber cables with bulky volume, this invisible optical cable uses a compact central tube framework, which is the core reason for its ultra-small size.
The sheath thickness is only 0.1mm (tolerance ±0.03mm), with a reference outer diameter of merely 0.45mm. Such a tiny profile allows it to be embedded in wall gaps, skirting lines, door frames or wallpaper seams without chiseling large grooves. Renovation owners no longer need to damage finished walls for network wiring, greatly cutting construction time and renovation costs.
The net cable weight is just 0.18kg/km (±10% tolerance), lightweight enough for single-person laying during indoor projects, and easier to store and transport in bulk orders.
3. Reliable Mechanical Strength & Wide Temperature Adaptability for Indoor Scenarios
Many ultra-thin fiber cords break easily during pulling, but Softelo’s invisible optical cable reserves sufficient tensile safety margin for construction work:
- Short-term allowable tensile force: 5N, fiber strain controlled within 0.8% without permanent damage to core glass
- Breaking force ranges 40–55N, resisting accidental pulling and extrusion during wall embedding
The operating temperature range covers -20℃ to 60℃, adapting to all-year indoor environments, including high-temperature attic spaces and cold basement wiring. It won’t crack or harden under extreme temperature changes, guaranteeing decades of stable service life.
4. Ideal Application Scenarios for Invisible Optical Cable
This micro central tube fiber cord targets all indoor invisible networking demands:
- New & renovated residential FTTH concealed wiring
- Luxury villa smart home integrated optical network layout
- Office, hotel interior hidden communication wiring
- Small commercial space wall-mounted invisible broadband access
For telecom distributors and engineering contractors, standardized product parameters bring stable batch consistency. Uniform carton loading and lightweight weight also reduce ocean freight costs for cross-border export orders from Hangzhou Softelo Optic.
Final Summary
When selecting invisible optical cable for indoor FTTH projects, buyers should not only focus on thin appearance, but also verify fiber attenuation indicators, mechanical tensile data and dimensional stability. Softelo Optic’s G657A2 invisible fiber cable balances ultra-miniature size, low signal loss and durable physical performance, being a cost-effective solution for global invisible indoor fiber wiring demands.
Post time: Jul-20-2026
