ONT-2GE-DW 2GE Dual Band WIFI XPON ONT
Model Number: ONT-2GE-DW
Brand: Softel
MOQ: 1
Detect and exchange PON mode automatically
Support EasyMesh protocol
WiFi5 Dual Band 1200Mbps
01
Product Description

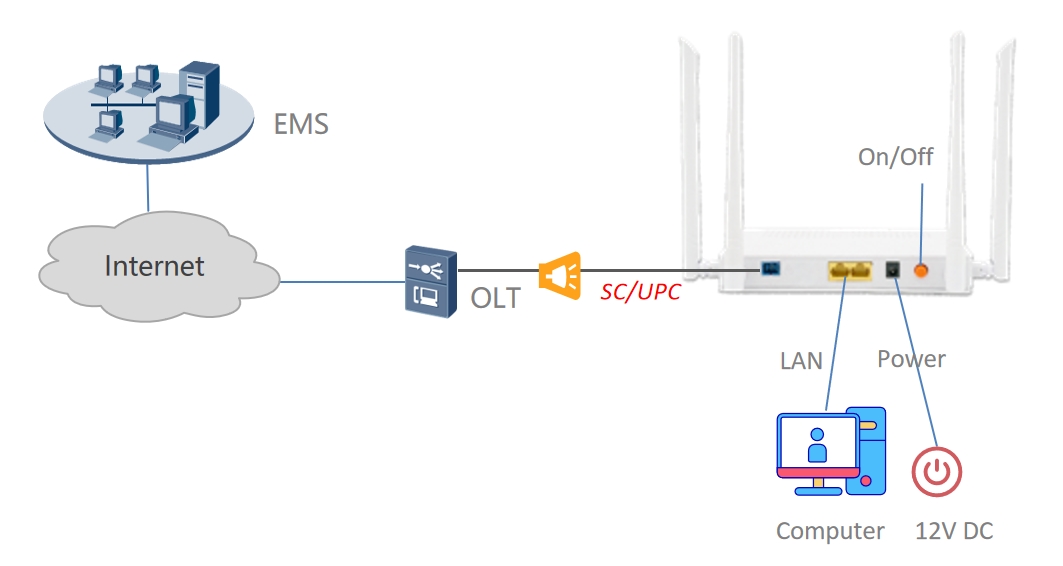

ONT-2GE-DW (2GE+WiFi5 XPON ONT) is designed to meet the FTTH and triple play service requirements of fixed network operators. The ONT is based on a high-performance chipset (Realtek) technology solution, supporting IEEE802.11b/g/n/ac WIFI technology and other Layer 2/Layer 3 functions. The ONT supports the OAM/OMCI protocol, and we can configure or manage various services of the ONT on the SOFTEL OLT.
The ONU has high reliability and is easy to manage and maintain. It has QoS guarantees for different services. It complies with the China Telecom CTC2.1/3.0 and international technical standards such as IEEE802.3ah, ITU-T G.984, etc.
Key Features
Detect and exchange PON mode automatically
Support EasyMesh protocol
WiFi5 Dual Band 1200Mbps
IPv4/IPv6 Stack
| Hardware Parameter | |
| Dimension | 178mm×120mm×30m(L×W×H) |
| Net weight | 0.31Kg |
| Operating condition | Operating temp: 0 ~ +55°C
Operating humidity: 10 ~ 90% (non-condensed) |
| Storing condition | Storing temp: -30 ~ +60°C
Storing humidity: 10 ~ 90% (non-condensed) |
| Power adapter | DC 12V,1.0A, external AC-DC
power adaptor |
| Power supply | ≤12W |
| Interface | 2GE+WiFi5 |
| Indicators | PWR, PON, LOS, WAN, LAN1, LAN2, 2.4G, 5G |
| Interface parameter | |
| PON interface | 1XPON port(EPON PX20+ and GPON Class B+)
SC single mode, SC/UPC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload optical power: -3dBm(EPON) or -8dBm (GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm |
| WiFi interface | Compliant with IEEE802.11b/g/n/ac
WiFi:2.4GHz 2×2, 5.8GHz 2×2, 5dBi antenna, rate up to 1.167Gbps,Multiple SSID TX power: 2.4GHz: 23dBm; 5GHz: 24dBm RX power: 2.4GHz: HT40-MCS7 -72dBm; 5GHz: VHT80 MCS9 <-62dBm |
| User interface | 2×GE, Auto-negotiation,RJ45 ports |
| Function Data | |
| O&M | OAM/OMCI,Telnet,WEB,TR069
Support full management of HGU functions by VSOL OLT |
| Connect Mode | Support bridge, router & bridge/router mixed mode |
| QoS | Support 4 queues
Support SP, WRR, 802.1P and DSCP |
| Data Service Functions
|
• Full speed non-blocking switching
• 2K MAC address table • 64 full range VLAN ID • Support VLAN tag, untag, transparent, trunk, translation mode • Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc • Support auto polarity detection of Ethernet ports (AUTO MDIX) • Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy |
| Wireless | Integrated 802.11b/g/n/ac
• Authentication:WEP/WAP-PSK(TKIP)/ WAP2-PSK(AES) • Modulation type:DSSS,CCK and OFDM • Encoding scheme:BPSK,QPSK,16QAM and 64QAM Easymesh |
| VoIP | SIP and IMS SIP
G.711a/G.711u/G.722/G.729 Codec Echo cancellation,VAD/CNG,DTMF Relay T.30/T.38 FAX Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference Line testing according to GR-909 |
| L3 | IPv4, IPv6 and IPv4/IPv6 dual stack
DHCP/PPPOE/Static Static route, DHCP Server NAT/DMZ/DDNS/Virtual Server |
| Security | Support Firewall
Support Mac filter Based on MAC or URL Support ACL |
