ONT-4GE-DW XPON 4GE+WIFI 5+USB 3.0 GPON/EPON ONU
Model Number: ONT-4GE-DW
Brand: Softel
MOQ: 1
ZTE XPON + MTK Wi-Fi Chipset High-Performance Solution
WiFi 5 Dual Band 1200Mbps
IPv4/IPv6 Dual Stack
01
Product Description
Summary

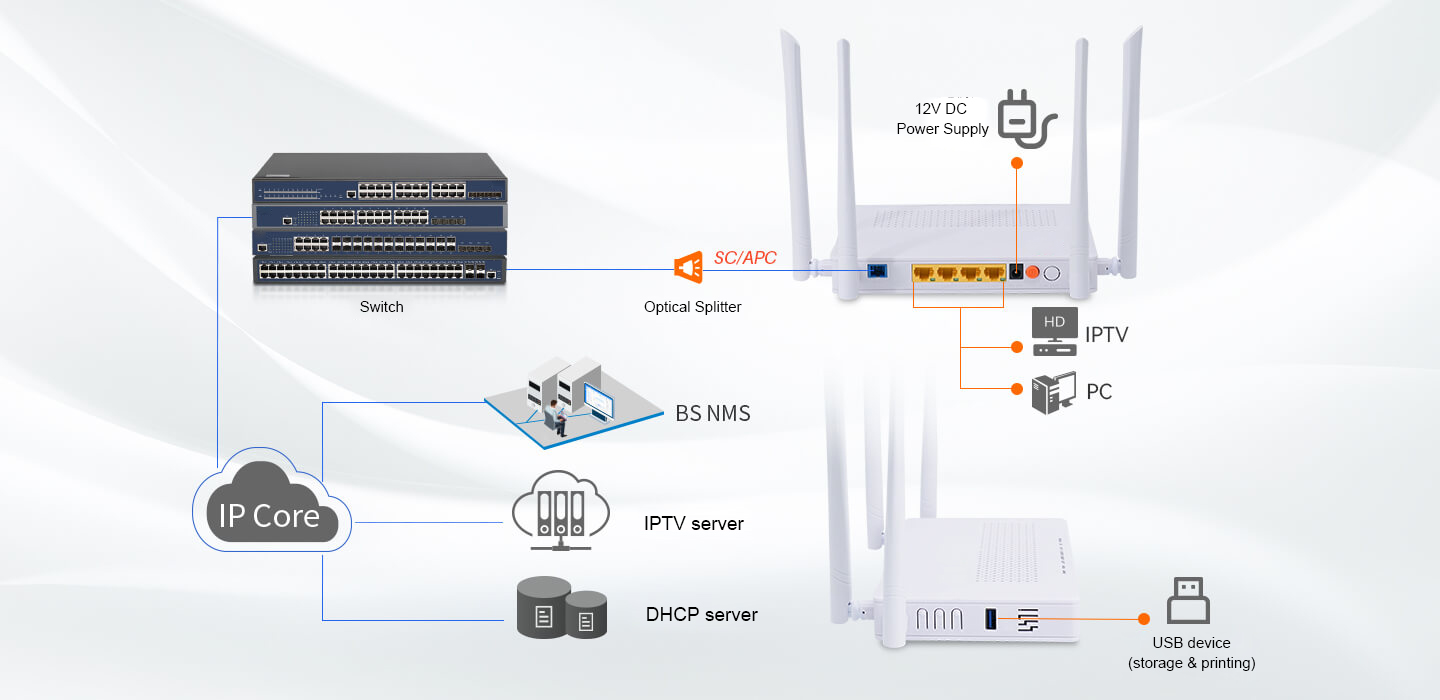

ONT-4GE-DW (4GE+WiFi5+USB3.0 XPON ONT) is a broadband access device specially designed to meet the needs of fixed network operators for FTTH and triple play services.
The ONT is based on high-performance chip solutions, supports XPON dual-mode technology (EPON and GPON), and also supports IEEE802.11b/g/n/ac WIFI technology and other Layer 2/Layer 3 functions, providing data service for carrier-grade FTTH applications. In addition, the ONT also supports the OAM/OMCI protocol, and we can configure or manage various services of the ONT on the SOFTEL OLT.
The ONT has high reliability, is easy to manage and maintain, and has QoS guarantees for various services. It conforms to a series of international technical standards such as IEEE802.3ah and ITU-T G.984.
Features
- ZTE XPON Chipset + MTK Wi-Fi Chipset High Performance Solution
- WiFi 5 Dual Band 1200Mbps
- IPv4/IPv6 Dual Stack
- USB3.0 Interface For Shared Storage/Printer
| Hardware Parameter | |
| Dimension | 205mm×140mm×37m(L×W×H) |
| Net weight | 0.34Kg |
| Operating condition | Operating temp: 0 ~ +50°COperating humidity: 5 ~ 90% (non-condensed) |
| Storing condition | Storing temp: -30 ~ +75°CStoring humidity: 5 ~ 90% (non-condensed) |
| Power adapter | DC 12V, 1/1.5A, external AC-DC power adaptor |
| Power supply | ≤10W |
| Interfaces | 4GE+WIFI 5+USB 3.0 |
| Indicators | PWR, PON, LOS, WAN, ETH1~ETH4, 2.4Ghz WIFI, 5Ghz WIFI, WPS, USB |
| Interface Parameter | |
| PON interface | 1XPON port(EPON PX20+ and GPON Class B+)SC single mode, SC/UPC connector
TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload optical power: -3dBm(EPON) or -8dBm (GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm |
| WIFI interface | Compliant with IEEE802.11b/g/n/ac2.4GHz Operating frequency: 2.4000-2.4835GHz
5.0GHz Operating frequency: 5.150-5.825GHz Support MIMO, rate up to 1.167Gbps WiFi: 2.4GHz( 2T2R ), 5.8GHz( 2T2R ), 5dBi antenna, support: multiple SSID TX power: 11n–22dBm/11ac–24dBm |
| LAN interface | 4*GE, Auto-negotiation, RJ45 ports |
| USB interface | USB 3.0 for Shared Storage/Printer |
| Function Data | |
| XPON mode | Dual mode , can access EPON/GPON OLTs(HUAWEI,ZTE,FiberHome, etc). |
| Connect mdoe | Support bridge mode and route mode |
| WiFi | IEEE802.11b/g/n/ac(TX power:17dBm/16dBm/15dBm)WiFi Authentication : WEP/WAP-PSK(TKIP)/WAP2-PSK(AES) |
| Firewall | DDOS, Filtering Based on ACL/MAC/URL |
| Layer2 | 802.1D&802.1ad bridge,802.1p Cos,802.1Q VLAN |
| Layer3 | IPv4/IPv6 , DHCP Client/Server , PPPoE ,NAT , DMZ ,DDNS |
| Multicast | IGMP v1/v2/v3 , IGMP snooping |
| Security | Flow & Storm control, Loop Detection |
| O&M | WEB/TELNET/OAM/OMCI, Support private OAM/OMCI protocol and Unified network management of SOFTEL OLT |
