FTTx Dual Mode EPON and GPON ONU 1GE Port ZTE Chipset

Model Number: ONT-1GEx

Brand: Softel

MOQ: 1

gou EPON/GPON Dual Mode

gou Compatible with Most Brand of OLT

gou Support WAN PPPoE/DHCP/Static IP/Bridge Mode

Product Detail

Technical Parameters

Network Application

Download

01

Product Description

Brief Intro and Features

ONT-1GEX dual-mode 1GE ONU port is the ultimate solution to provide reliable, high-speed Internet access for residential and SOHO users. With its multifunctional routing function for XPON ONU (EPON and GPON mode) and LAN Switch function, the device is fully compliant with ITU-T G.984 and IEEE802.3ah standards, working perfectly with most brands of EPON OLT and GPON OLT.

ONT-1GE xPON ONU provides a PON interface for uplink and an Ethernet port for downlink, which can be seamlessly integrated with various network systems. Create optical access solutions such as FTTH (fiber-to-the-home) and FTTB (fiber-to-the-building) to provide residential and business customers with last-mile broadband access.

The main features of the device include TR-069 remote configuration and maintenance, support for multiple WANs with route/bridge mode, layer 3 gateway with hardware NAT, layer 2 802.1Q VLAN, 802.1P QoS, and ACL, bi-directional FEC, As well as support for VEIP and PPTP. Additionally, it supports IPV4 & IPV6 management and transport, as well as IGMP V2 and MLD proxy/listener protocols.

ONT-1GEX fully integrates the reliability, maintainability, and security design of carrier-grade equipment. You can rest assured that your network retains connectivity to the Internet while remaining protected from unauthorized access, providing DDSN, ALG, DMZ, Firewall, and UPNP services to its users. As such, the ONT-1GEX Dual Mode 1GE ONU Port is a highly efficient device that provides uninterrupted Internet access and robust security features, making it the perfect addition to any residential or small office network.



Dual Mode EPON and GPON ONU 1GE Port ZTE Chipset

Technical Items

Parameters

PON Interface 1 G/EPON Port(EPON PX20+; GPON Class B+)Wavelength: Tx1310nm,Rx 1490nm

SC/UPC Connector

Receiving Sensitivity: ≤ -27dBm

Transmitting Optical Power: 0~+4dBm

Transmission Distance: 20KM

GPON: Up 1.244Gbps; Down 2.488Gbps
EPON: Up 1.244Gbps; Down 1.244Gbps

LAN Interface 1 x 10/100/1000Mbps auto-adaptive Ethernet interfaces.10/100/1000M Full/Half, RJ45 Connector
LED Indicator 3, For Status of REG, SYS, LINK/ACT
Operating Condition Temperature: -30℃+70℃Humidity: 10%90%Non-condensing
Storing Condition Temperature: -30℃+70℃Humidity: 10%90%Non-condensing
Power Supply 100V-240V AC, 50Hz-60Hz to DC 12V/0.5A(Option)
Power Consumption ≤4W
Dimension 78mm×78mm×21mmL×W×H
Net Weight 60g

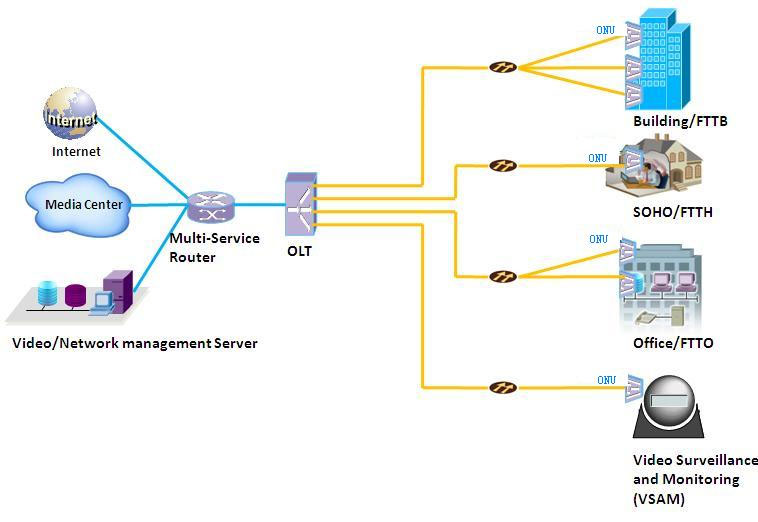

xPON Dual Mode ONU 1GE Port
