ONT-M25GU FTTD Portable 2.5GbE Mini XPON ONU
Model Number: ONT-M25GU
Brand: Softel
MOQ: 1
XPON Dual Mode Automatically Access to EPON/GPON
2.5GbE LAN port
2-in-1 USB port support power supply and Internet access
01
Product Description
Introduction

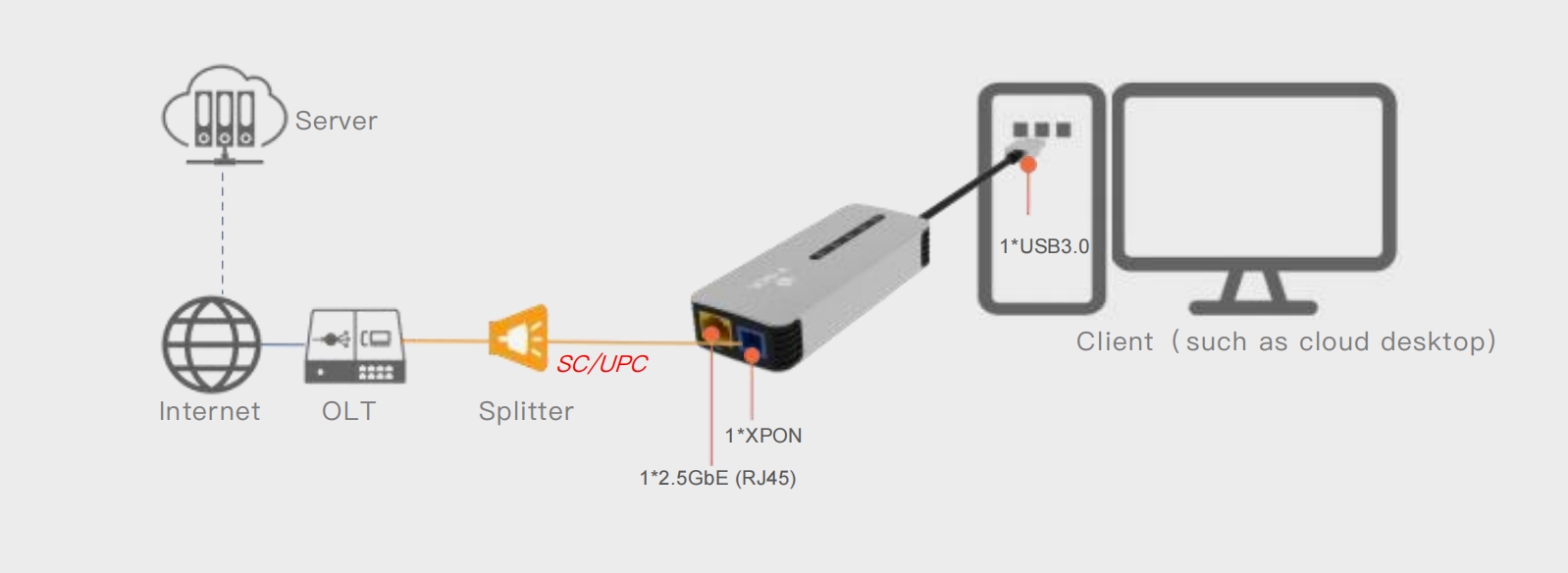

ONT-M25 GU (XPON 1 * 2 .5 GbE+1 *Type-A( Default) or Type-C( Customizable) ONU) is a small portable access device designed for FTTD(desktop) access and other needs. This ONU is based on a high-performance chip solution and has a 2.5GbE port, which can provide users with a high-speed network experience and truly realize Gigabit to the desktop. There is a Type-A(Default) or Type-C(Customizable) port, which can be used for both power supply and data transmission, eliminating the need for external power supply or optical composite cable power supply, and is cost-effective, for terminals without RJ45 network interfaces, this interface can be directly connected without the need for additional network port expansion docks, which is more convenient.
The main shell of this ONT is made of aluminum alloy and is integrated into one piece, which has high reliability. The two ends are made of ABS material and have heat dissipation holes, so it can be used in environments with a wide temperature range.
Key Features
XPON Dual Mode Automatically Access to EPON/GPON
2.5GbE LAN port
Two-in-one port support power supply and Internet access
Wide Working Temp -10℃~ +55℃
| Hardware Parameter | |
| Dimension | 110mm×45mm×20mm(L×W×H) |
| Net weight | 0. 1Kg |
| Operatingcondition | • Operating temp: -10 ~ +55℃
• Operating humidity: 5 ~ 95% (non-condensing) |
| Storingcondition | • Storing temp: -40 ~ +70℃
• Storing humidity: 5~ 95% (non-condensing) |
| Interfaces | 1*2.5GbE+1*Type-A(Default) or Type- C(Customizable) |
| Indicators | PWR, PON, LOS, WAN, LAN |
| Interface Parameter | |
|
PON interface |
• 1 XPON port(EPON PX20+ & GPON Class B+) • SC single mode, SC/ UPC connector • TX optical power: 0～+4dBm • RX sensitivity: -27dBm • Overload optical power: -3dBm( EPON) or - 8dBm(GPON) • Transmission distance: 20 KM • Wavelength: TX 1310nm, RX1490nm |
| LAN interface | 1*2.5GbE, Auto-negotiation RJ45 connectors |
| USB3.0
interface |
1*Type-A(Default) or Type-C(Customizable) ,
powered and data transmission through this port |
| Internet connection | • Support Bridge mode |
| Alarm | • Support Dying Gasp
• Support Port Loop Detect |
| LAN | • Support Port rate limiting
• Support Loop detection • Support Flow control • Support Storm control |
| VLAN | • Support VLAN tag mode
• Support VLAN transparent mode • Support VLAN trunk mode • Support VLAN hybrid mode |
| Multicast | • IGMPv1/v2/Snooping
• Support multicast protocol VLAN and multicast data stripping • Support multicast translation function |
| QoS | • Support WRR 、SP+WRR |
| O&M | • WEB/TELNET/SSH/OMCI
• Support private OMCI protocol and Unified network management of SOFTEL OLT |
| Firewall | • Support IP address and port filtering function |
| Other | • Support log function |
