SOFTEL 1×GE(POE+) POE XPON ONT PD( Powered-Device) Mode
Model Number: PONT-D1GE
Brand: Softel
MOQ: 1
Detecting Rogue ONU
POE PD Type Power Supply
XPON Dual Mode Plug&Play
01
Product Description
Brief Intro and Features
The SOFTEL PONT-D1GE XPON POE ONU PD type offers a range of advanced features, making it ideal for telecom operators who require a high-performance connectivity solution for FTTH and SOHO applications.

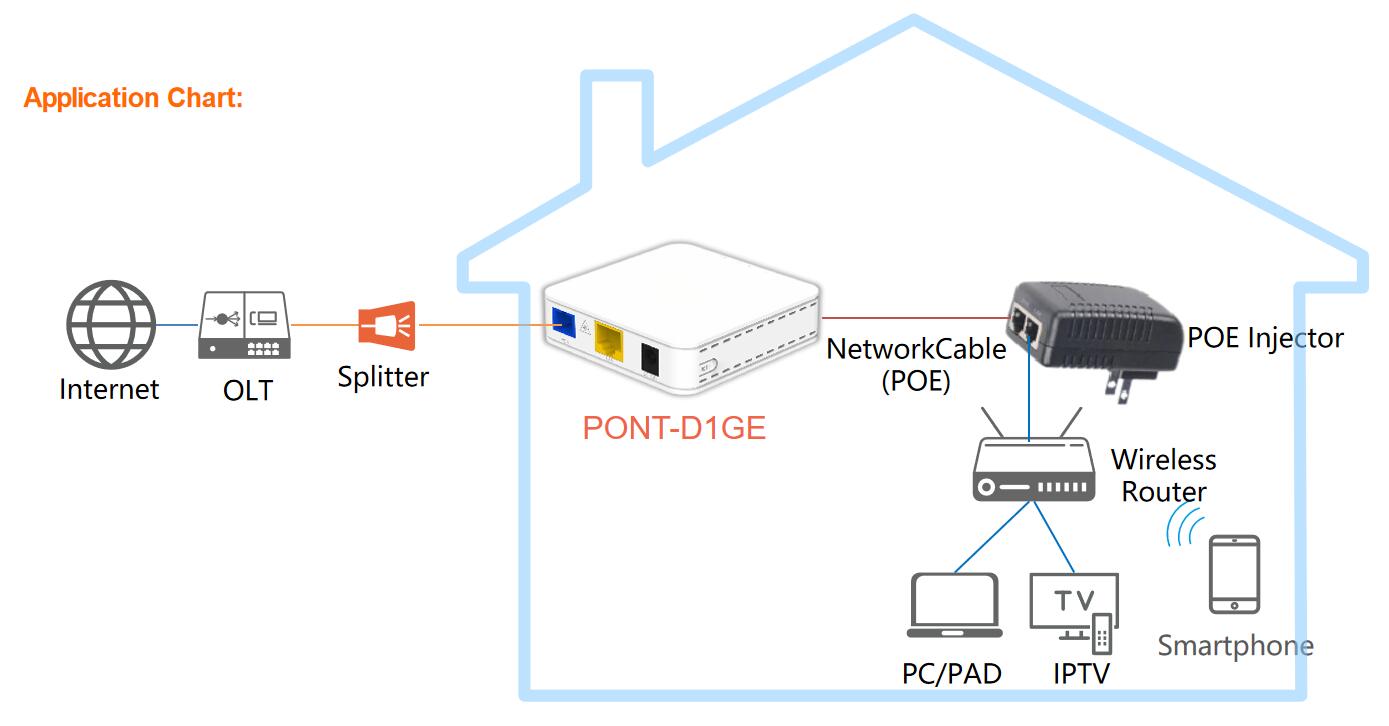

The ONU is built with cutting-edge chip technology and supports Layer 2/Layer 3 functions at the same time, providing carrier-class high-quality data services for FTTH applications. Its XPON dual-mode plug-and-play is easy and worry-free installation. The reverse POE function is a unique feature of the PONT-D1GE, which means that it can be powered by user-end equipment if there is no convenient power outlet. Therefore, it is ideal for use in areas with limited infrastructure.
This ONU has excellent reliability and can withstand harsh temperatures while maintaining firewall functionality for easy management and maintenance. It also provides QoS guarantees for different services. In addition, we can provide custom software and logo services to make this solution perfectly fit your specific needs. PONT-D1GE complies with international technical standards, including IEEE 802.3ah and ITU-T G.984, ensuring quality and reliability for our customers. With its advanced features and superior design, this ONU is the perfect choice for telecom operators and service providers who require the highest performance.
| SOFTEL 1×GE(POE+) POE XPON ONT PD( Powered-Device) Mode | |
| Dimension | 82mm×82mm×25mm（L×W×H） |
| Net weight | 0.085Kg |
| Operating Condition | Operating Temp: -30℃～+60℃ |
| Operating Humidity:10~90% (non-condensing) | |
| Storing Condition | Storing Temp: -30℃～+70℃ |
| Storing Humidity: 10 ~ 90% (non-condensing) | |
| Power Adapter | DC 12V/0.5A, External AC-DC Power Adaptor |
| POE PWR Supply | POE(PD) DC +12 ~ +24V |
| Interfaces | 1GE |
| Indicators | SYS, REG, LINK/CT |
| Interface Parameter | |
| PON Interface | 1XPON port(EPON PX20+ & GPON Class B+) |
| SC Single Mode, SC/UPC connector | |
| TX Optical Power: 0～+4dBm | |
| RX Sensitivity: -27dBm | |
| Overload Optical Power: -3dBm(EPON) or -8dBm(GPON) | |
| Transmission Distance: 20KM | |
| Wavelength: TX 1310nm, RX1490nm | |
| LAN Interface | 1*GE,Auto-negotiation, RJ45 connectors |
| POE 12V~24V DC | |
| Software Features | |
| PON Mode | XPON Dual mode , Can access to mainstream EPON/GPON OLTs. |
| Uplink Mode | Bridging mode and Routing mode. |
| Smart O&M | Rogue-ONU detection and Hardware Dying Gasp. |
| Firewall | DDOS, Filtering Based on ACL/MAC/URL. |
| Software Parameters | |
| Basic | Support MPCP discover®ister |
| Support authentication Mac/Loid/Mac+Loid | |
| Support Triple Churning | |
| Support DBA bandwidth | |
| Support auto-detecting, auto-configuration, and auto firmware upgrade | |
| Support authentication SN/Psw/Loid/Loid+Psw | |
| Alarm | Support Dying Gasp |
| Support Port Loop Detect | |
| Support Eth Port Los | |
| LAN | Support Port rate limiting |
| Support Loop detection | |
| Support Flow control | |
| Support Storm control | |
| VLAN | Support VLAN tag mode |
| Support VLAN transparent mode | |
| Support VLAN trunk mode(max 8 vlans) | |
| Support VLAN 1:1 translation mode(≤8 vlans) | |
| Auto VLAN detection | |
| Multicast | Support IGMPv1/v2 |
| Support IGMP Snooping | |
| Max Multicast vlan 8 | |
| Max Multicast Group 64 | |
| QoS | Support 4 queues |
| Support SP and WRR | |
| Support 802.1P | |
| L3 | Support IPv4 |
| Support DHCP/PPPOE/Static IP | |
| Support Static route | |
| Support NAT | |
| O&M | Support CTC OAM 2.0 and 2.1 |
| Support ITUT984.x OMCI | |
| Support EMSTR069WEBTELNETCLI | |
PONT-D1GE 1×GE(POE+) POE XPON ONT PD( Powered-Device) Mode Datasheet-V2.0-EN
