ONT1110-L3 1GE 1FE 2.4G WIFI XPON ONU
Model Number: ONT1110-L3
Brand: Softel
MOQ: 1
EPON/GPON Automatic switching
Support VOIP Service
1GE+1FE or 1GE+3FE are available options
01
Product Description

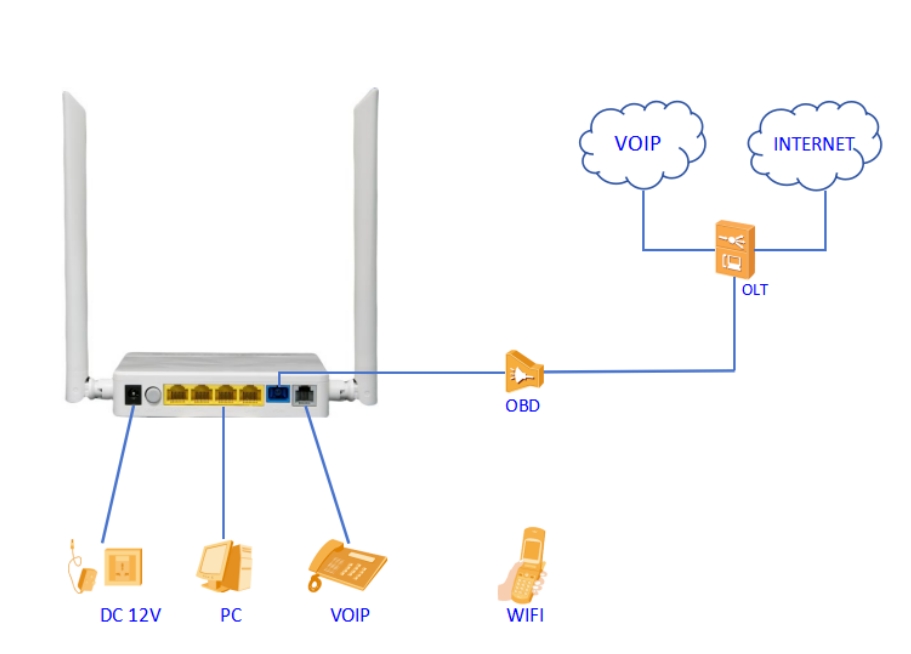

Optical Network Unit (ONU) is a user-side device in the PON network, providing access services such as data services for users. The main function of the ONU device is to receive optical signals in the downlink direction and convert them into Ethernet packets for transmission to the user, and to convert the Ethernet packets received from user devices or the network in the uplink direction into optical signals and transmit them through the PON network to the upper-level network.
ONT1110-L3 series is an optical network unit (ONU) product within our company's xPON series of products. This product utilizes passive optical network (PON) technology and outperforms traditional access products in terms of cost-effectiveness, maintainability, and scalability.
ONT1110-L3 series offers 1 Gigabit port, 3 100Mbps ports or 1 Gigabit port and 1 100Mbps port (optional), single-frequency WIFI (optional), 1 VOIP interface (optional), and 1 USB interface.
Key Features
EPON/GPON Automatic switching
2.4G WIFI
VOIP Service
RTL Chip
Personalized Customization
| ONT1110-L3 1GE 1FE 2.4G WIFI XPON ONU | ||
| Hardware Specifications | ||
| Power related | interface | DC005 φ2.1mm |
| Voltage | 12V | |
| Power dissipation | ≤7W | |
| Environment related | Operating temperature | 0~+50℃ |
| Working humidity | 10~85%(non-condensing) | |
| storage temperature | -30~+60℃ | |
| Size and weight | Product Size | 140*90*26mm |
| Package Size | 195*190*40mm(1pcs/box) | |
| Product Weight | 300g | |
| Gross weight | ≤0.5Kg | |
| Box size | 700*524*440mm(80boxes/crates) | |
| Total weight | ≤43Kg | |
| Functional Parameter | ||
| Network Type | Support EPON/GPON adaptive | |
| Gateway | Support HGU function | |
| L2 protocol | 802.1D&802.1ad bridge，802.1p Cos，802.1Q | |
| L3 protocol | Support IPv4/IPv6，DHCP Client/Server，PPPoE，NAT，DMZ，DDNS | |
| LAN Configuration | Support LAN IP and DHCP Server configuration | |
| Network Port | Port Mapping & Loop Detection | |
| Network safe | Support Firewall and ACL | |
| Multicast | Support IGMP Snooping/Proxy | |
| Port Parameters | ||
| PON | Interface Type | SC/UPC |
| Receive sensitivity | ≤-27dBm | |
| Luminous power | +0.5~+5dBm | |
| Transmission distance | 20Km | |
| Working wavelength | TX：1310nm RX：1490nm | |
| LAN | Interface Type |
1 gigabit, 3 hundred-megabit or 1 gigabit, 1 hundred-megabit RJ45 interface |
| Transmission mode |
Gigabit: 10/100/1000 Mbps adaptive Hundred Megabit: 10/100 Mbps adaptive |
|
| Wi-Fi | protocol |
IEEE802.11a/b/g/n |
| 2.4G working frequency |
2.400-2.4835GHz |
|
| 2.4G External Antenna |
2*2MIMO，300Mbps |
|
| Number of antennas |
2* 5dB high-gain antennas |
|
| VoIP | SIP |
Support SIP |
| Audio Coding Standard |
Support G.711a/G.711u/G.722/G.729 Codec |
|
| Other |
Supports echo cancellation, VAD/CNG, and DTMF Relay functions |
|
|
Support T.38 fax / caller identification / call waiting / call |
||
|
Support transfer/call transfer/call hold/three-party conference |
||
