ONT-1GEX High Reliability ONT EPON/GPON 1GE XPON ONU
Model Number: ONT-1GEX
Brand: Softel
MOQ: 1
EPON/GPON Dual Mode
High-performance Chip Technology Solution
Support Layer 2/Layer 3 Function
01
Product Description
Introduction

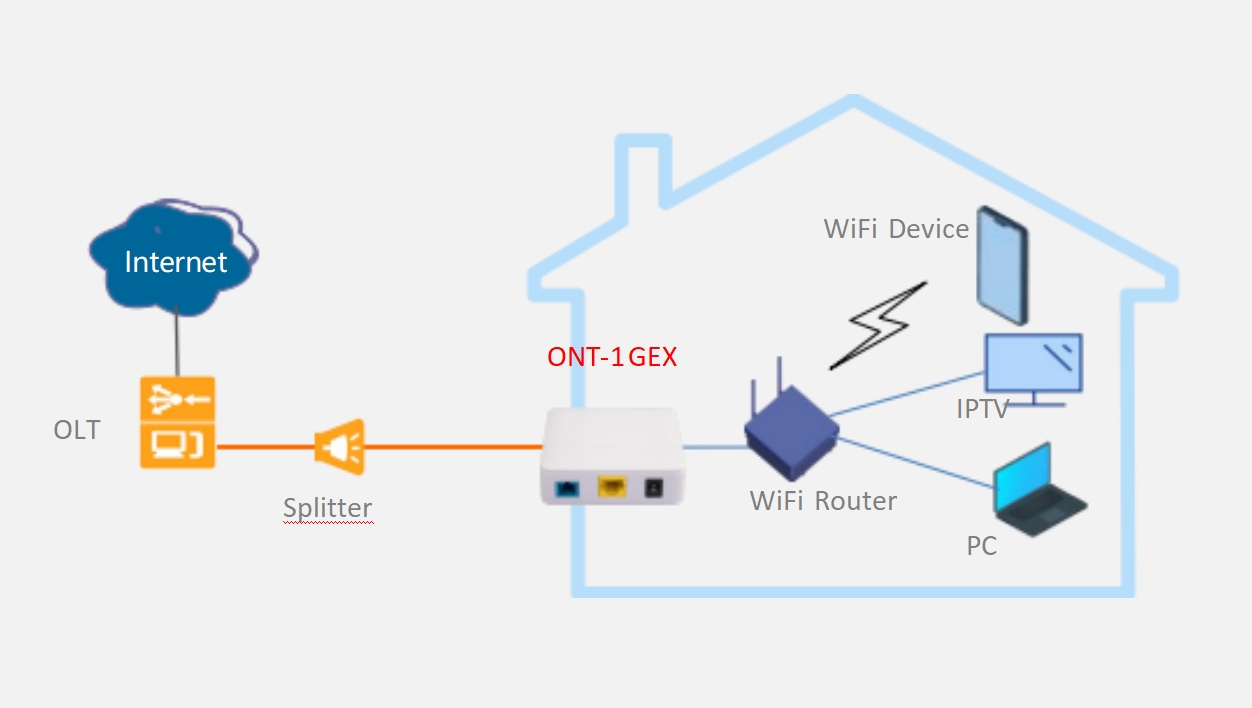

ONT-1GEX( XPON 1GE ONU ) is specially designed to meet the needs of telecom operators for FTTO (office), FTTD (desktop), FTTH (home), SOHO broadband access, video surveillance, etc. The ONU is based on high-performance chip technology solutions, and supports Layer 2/Layer 3 functions, providing data services for carrier-grade FTTH applications.
The ONT has high reliability and can be applied to a wide temperature environment; and has a powerful firewall function, which is easy to manage and maintain. It can provide QoS guarantee for different services. The ONT complies with international technical standards such as IEEE802.3ah and ITU-T G.984.
Key Features
XPON Dual Mode Automatically Access to EPON/GPON
Detecting Rogue ONU
Powerful Firewall
Wide Working Temp -25℃~+55℃
| Hardware Parameter | |
| Dimension | 82mm×82mm×25mm(L×W×H) |
| Net weight | 0.085Kg |
| Operating condition | • Operating temp: -10 ~ +55℃
• Operating humidity: 5 ~ 95% (non-condensing) |
| Storing condition | • Storing temp: -40 ~ +70℃
• Storing humidity: 5~ 95% (non-condensing) |
| Power adapter | DC 12V, 0.5A, external AC-DC power adaptor |
| Power supply | ≤4W |
| Interfaces | 1GE |
| Indicators | SYS, LINK/ACT, REG |
| Interface Parameter | |
|
PON interface |
• 1 XPON port(EPON PX20+ & GPON Class B+)
• SC single mode, SC/UPC connector • TX optical power: 0～+4dBm • RX sensitivity: -27dBm • Overload optical power: -3dBm(EPON) or - 8dBm(GPON) • Transmission distance: 20KM • Wavelength: TX 1310nm, RX1490nm |
| LAN interface | 1*GE, Auto-negotiation RJ45 connectors |
| Function Data | |
| XPON Mode | Dual mode,Auto-access to EPON/GPON OLT |
| Uplink Mode | Bridging and Routing Mode |
| Abnormal
protection |
Detecting Rogue ONU, Hardware Dying Gasp |
| Firewall | DDOS, Filtering Based on ACL/MAC/URL |
| Product Feature | |
|
Basic |
• Support MPCP discover®ister
• Support authentication Mac/Loid/Mac+Loid • Support Triple Churning • Support DBA bandwidth • Support auto-detecting, auto-configuration, and auto firmware upgrade • Support SN/Psw/Loid/Loid+Psw authentication |
|
Alarm |
• Support Dying Gasp
• Support Port Loop Detect • Support Eth Port Los |
|
LAN |
• Support Port rate limiting
• Support Loop detection • Support Flow control • Support Storm control |
|
VLAN |
• Support VLAN tag mode
• Support VLAN transparent mode • Support VLAN trunk mode(max 8 vlans) • Support VLAN 1:1 translation mode(≤8 vlans) |
|
Multicast |
• Support IGMPv1/v2/Snooping
• Max Multicast vlan 8 • Max Multicast Group 64 |
|
QOS |
• Support 4 queues
• Support SP and WRR • Support 802. 1P |
|
L3 |
• Support IPv4/IPv6
• Support DHCP/PPPOE/Static IP • Support Static route • Support NAT |
|
Management |
• Support CTC OAM 2.0 and 2. 1
• Support ITUT984.x OMCI • Support WEB • Support TELNET • Support CLI |
