Optical Fiber FAQ: Quick Questions and Answers
As a major product category, optical fiber involves a wide range of technical knowledge. This article presents some key concepts in a quick Q&A format for easy reference.
1. What are the basic parameters used to describe the transmission characteristics of an optical fiber link?
Answer: The main parameters include attenuation, dispersion, bandwidth, cutoff wavelength, and mode field diameter (MFD).
2. What causes optical fiber attenuation?
Answer: Optical fiber attenuation refers to the reduction of optical power between two cross-sections of a fiber and varies with wavelength. The primary causes are scattering, absorption, and optical losses resulting from connectors and splices.
3. How is the attenuation coefficient of an optical fiber defined?
Answer: It is defined as the attenuation per unit length of a uniform optical fiber under steady-state conditions, usually expressed in dB/km.
4. What factors contribute to noise in optical fiber communication systems?
Answer: Noise sources include:
- Noise caused by insufficient extinction ratio
- Random optical intensity fluctuations
- Timing jitter noise
- Shot noise and thermal noise in the receiver
- Modal noise in the fiber
- Noise from pulse broadening caused by dispersion
- Mode partition noise in laser diodes (LDs)
- Frequency chirp noise in LDs
- Reflection-induced noise
5. What is the bandwidth of an optical fiber related to?
Answer: Fiber bandwidth refers to the modulation frequency at which the optical power amplitude drops by 50% (or 3 dB) from its zero-frequency value in the fiber transfer function. Fiber bandwidth is approximately inversely proportional to fiber length, and the bandwidth-length product remains constant.

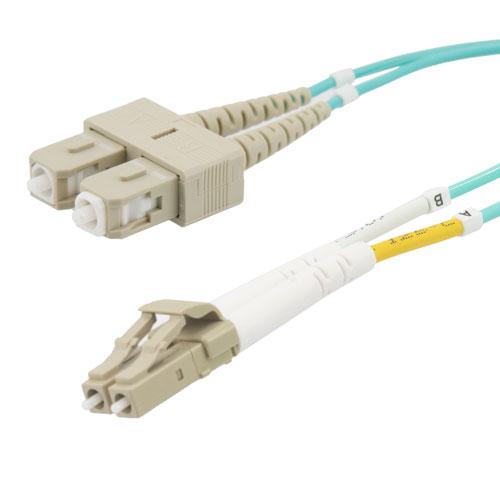

Example Product: LC to SC Duplex OM3 50/125 Multimode Fiber Patch Cable, LSZH Jacket
6. How many types of fiber dispersion are there, and what are they related to?
Answer: Fiber dispersion includes:
- Modal dispersion
- Material dispersion
- Waveguide (structural) dispersion
Dispersion depends on both the characteristics of the optical source and the fiber itself.
7. How can the dispersion characteristics of signals propagating in optical fiber be described?
Answer: They can be described using three physical parameters:
- Pulse broadening
- Fiber bandwidth
- Dispersion coefficient
8. What is the cutoff wavelength?
Answer: The cutoff wavelength is the shortest wavelength at which only the fundamental mode can propagate in the fiber. For single-mode fibers, the cutoff wavelength must be shorter than the operating wavelength.
9. How does fiber dispersion affect communication system performance?
Answer: Dispersion causes optical pulses to broaden during transmission, affecting:
- Bit error rate (BER)
- Transmission distance
- System transmission speed
10. What is the backscattering method?
Answer: The backscattering method measures attenuation along the length of a fiber. Although most optical power travels forward, a small portion is scattered backward toward the transmitter. By observing the backscattered signal over time, it is possible to measure:
- Fiber length
- Fiber attenuation
- Local irregularities
- Break points
- Losses at splices and connectors
Example Product: MPO 24-Pin to 3×MPO 8-Pin OM4 50/125μm Multimode Fiber Cable, LSZH Jacket, Aqua
11. What is the OTDR dead zone, and how does it affect testing?
Answer: An OTDR (Optical Time Domain Reflectometer) uses backscattered light generated during optical transmission to obtain attenuation information. It is used for measuring fiber attenuation, splice losses, fault location, and loss distribution along a fiber link.
Key OTDR performance parameters include:
- Dynamic range
- Sensitivity
- Resolution
- Measurement time
- Dead zone
The dead zone is the section immediately following a strong reflection event where the OTDR cannot accurately detect or resolve subsequent events. In practical testing, launch fibers and receive fibers are often used to minimize the impact of dead zones.
12. How are optical fibers classified according to refractive index distribution?
Answer: Optical fibers are classified into:
- Step-index fibers
- Graded-index fibers
Step-index fibers have relatively narrow bandwidths and are suitable for low-capacity, short-distance communication. Graded-index fibers offer wider bandwidths and are suitable for medium- and high-capacity communication systems.
13. How are optical fibers classified according to transmission modes?
Answer: Fibers are divided into:
Single-Mode Fiber (SMF)
- Core diameter: approximately 1–10 μm
- Supports only the fundamental mode
- Suitable for long-distance, high-capacity transmission
Multimode Fiber (MMF)
- Core diameter: approximately 50–60 μm
- Supports multiple propagation modes
- Lower transmission performance than SMF
In differential current protection systems using multiplexed protection channels, multimode fibers are often used between photoelectric conversion equipment in the communication room and protection devices in the control room.
14. What is the significance of the Numerical Aperture (NA) of a step-index fiber?
Answer: Numerical Aperture (NA) indicates the light-gathering capability of a fiber. The larger the NA, the stronger the fiber’s ability to collect incoming light.
15. What is birefringence in single-mode optical fibers?
Answer: Single-mode fibers support two orthogonal polarization modes. If the fiber is not perfectly cylindrically symmetric, the two polarization modes will have different refractive indices. The absolute difference between these refractive indices is known as birefringence.

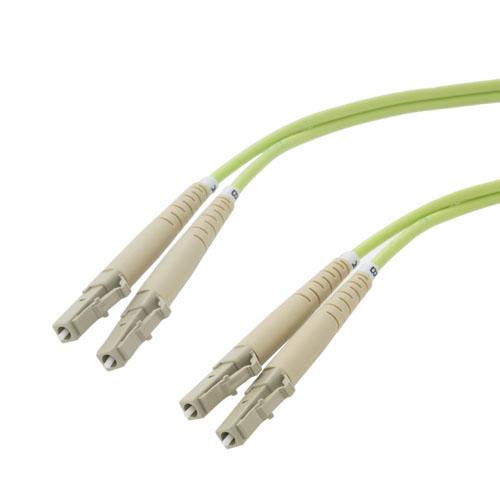

Example Product: OM5 50/125 Multimode Fiber Optic Cable, Dual LC to Dual LC, 5 m, OFNR Zipcord Jacket
16. What are the bending limitations for optical cables?
Answer: The bending radius should be:
- At least 20 times the cable’s outer diameter under static conditions
- At least 30 times the cable’s outer diameter during installation or movement
17. What should be considered in ADSS optical cable projects?
Answer: Three key technical considerations are:
- Mechanical design of the optical cable
- Determination of suspension points
- Selection and installation of matching hardware fittings
18. What are the two most important performance parameters of fiber optic connectors?
Answer: Fiber optic connectors (often called patch connectors) are primarily evaluated by:
- Insertion Loss (IL)
- Return Loss (RL)
19. What is insertion loss in a fiber optic connector?
Answer: Insertion loss refers to the reduction in effective transmitted power caused by introducing a connector into the optical path. Lower insertion loss is preferred. According to ITU-T recommendations, insertion loss should generally not exceed 0.5 dB.
20. What is return loss (reflection attenuation) in a fiber optic connector?
Answer: Return loss measures the amount of reflected optical power that returns through the input channel due to connector reflections. A higher return loss indicates better performance, with a typical value of 25 dB or greater.
